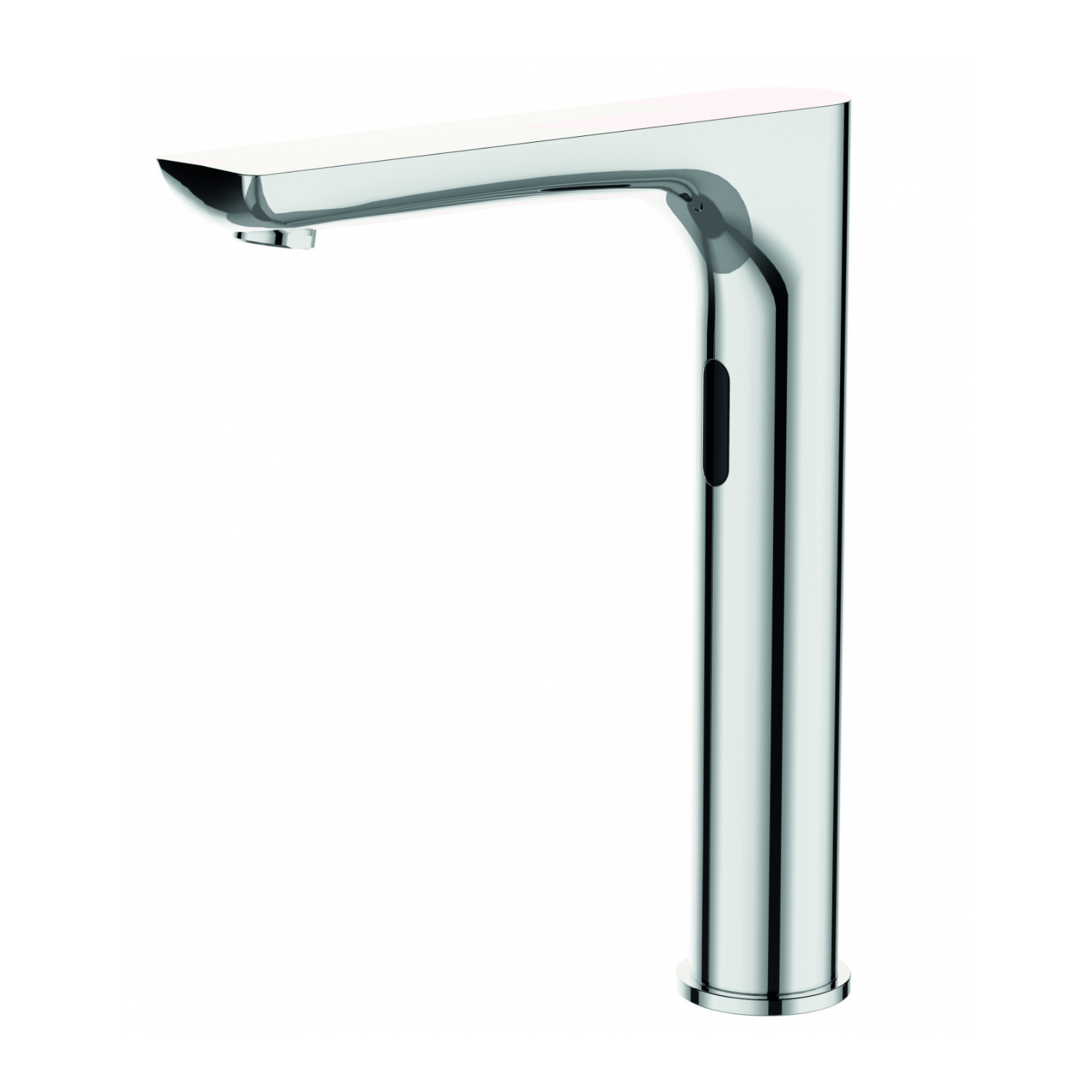

Photocell Tall Sink Faucet with Single Water Inlet

The BT.ES6500 model is a high-performance, single-water inlet, photocell-controlled long basin faucet equipped with advanced sensor technology. It's designed for hygiene and water conservation, especially in public areas, commercial buildings, and high-traffic areas.

🛠️ Technical Specifications

• Model Code: BT.ES6500
• Faucet Type: Photocell, long-spout basin mixer
• Water Inlet: Single water inlet (cold water only or pre-mixed hot-cold water)
• Mounting Type: Countertop mounting
• Material: 100% brass body — durable and long-lasting
• Finish: Bright chrome plating — corrosion and wear resistant, aesthetic surface
• Color: Polished chrome

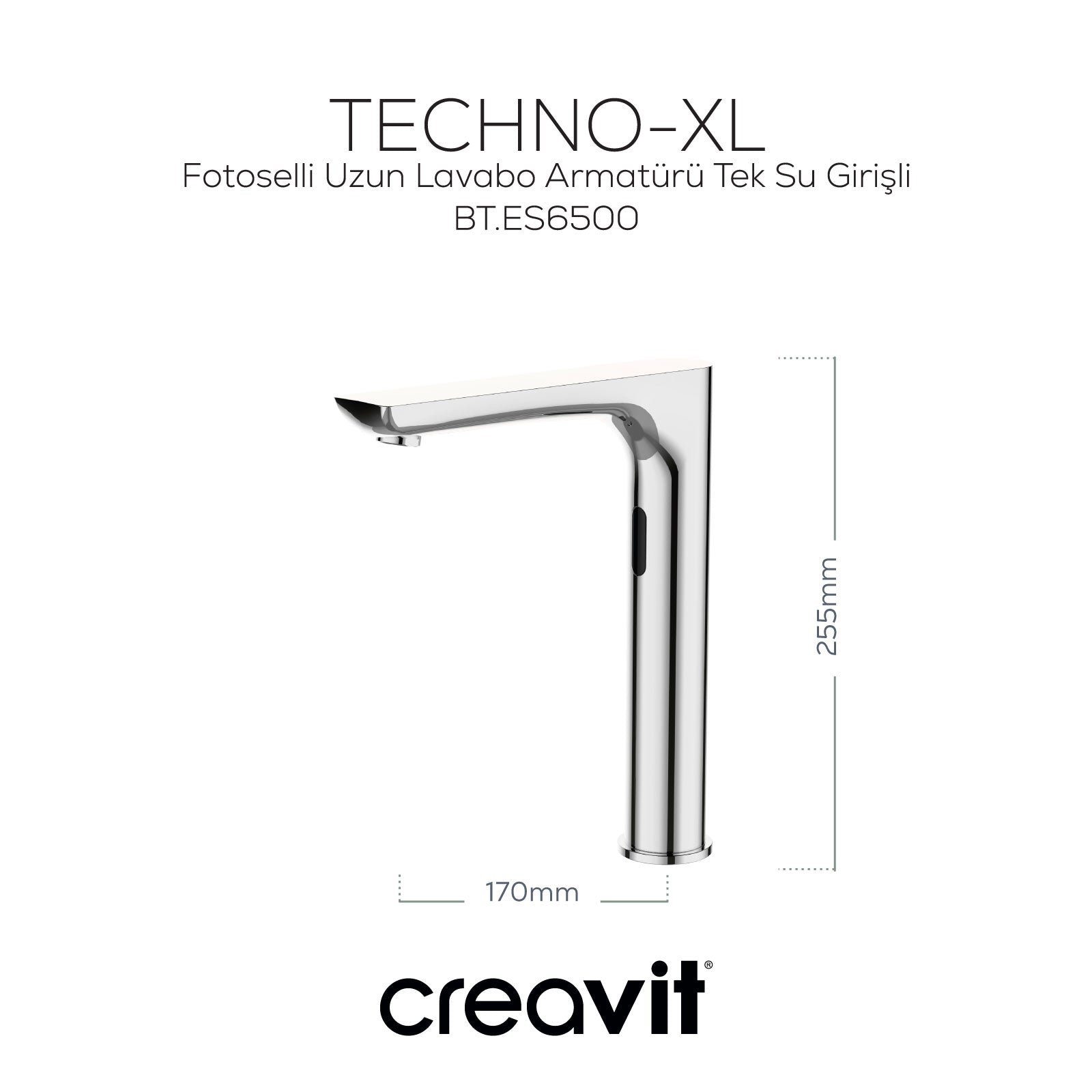

• Spout Length: 170 mm
• Spout Height: 231 mm
• Sensor Type: Advanced infrared (IR) sensor — motion and presence detection
• Sensor Detection Distance: Adjustable, sensitive detection between 10-20 cm
• Cartridge: Electronic solenoid valve — precise and rapid water on/off control
• Water Flow Rate: 5-9 liters/minute (sensor optimized)
• Working Voltage: 6-12V DC (powered by 4 AAA batteries or adapter)
• Power Source: Battery or adapter (optional)
• On-Off Mechanism: Automatic, water turns on when sensor is detected, turns off when sensor is lost
• Water Temperature Control: Since there is a single water inlet, temperature control is provided by an external system or pre-mixed water is used.
• Water Saving: Unnecessary water consumption is prevented thanks to sensor technology.
• Energy Efficiency: Low energy consumption, long battery life
• Warranty Period: 2 years

💡 Highlights

• Contactless and Hygienic Use: The user can turn the water on and off without touching the tap, thus reducing the risk of infection and cross-contamination.
• Long Spout: With its 170 mm length, it provides comfortable use in wide and deep sinks and allows for comfortable washing of hands.
• Single Water Inlet Design: Simple and quick installation by connecting to a single water line; hot-cold mixing is provided by an external system or only cold water is used.
• Adjustable Sensor Distance: Sensor detection distance can be easily adjusted according to the usage area and sink type.
• Durable and Stylish Design: Brass body and chrome plating provide long life and modern aesthetic appearance.
• Easy Installation and Maintenance: Convenient installation and maintenance thanks to standard benchtop mounting and easy access to the electronic valve module.
• Energy Efficient: Batteries last a long time thanks to low energy consumption; continuous power supply with adapter is possible.
• Manual Use Possibility: In case of battery failure or sensor failure, manual use option is available in some models (depending on model variation).

📦 Package Contents

• Creavit BT.ES6500 Photocell Long Sink Faucet (Single Water Inlet)
• Mounting brackets and screws
• Electronic magnetic valve and infrared sensor unit
• 4 AAA batteries or adapter (depending on model option)
• 3/8" flexible connection hoses
• Use, installation and maintenance manual

🏷️ Areas of Use

• Public buildings, hospitals, schools, offices and other public areas
• Restaurants, cafes, commercial kitchens and hotels
• Gyms, shopping malls and other high-use areas
• Ideal for modern residential bathrooms, especially wide and deep sinks

The Creavit BT.ES6500 long-spout, touchless basin faucet offers ease of use and flexibility with its single water inlet design. Advanced IR sensor technology ensures touchless and hygienic use while maximizing water savings. Its durable brass body and chrome finish ensure longevity, while its modern design offers an aesthetically pleasing appearance. Its long spout makes it particularly practical for use in large sinks.
